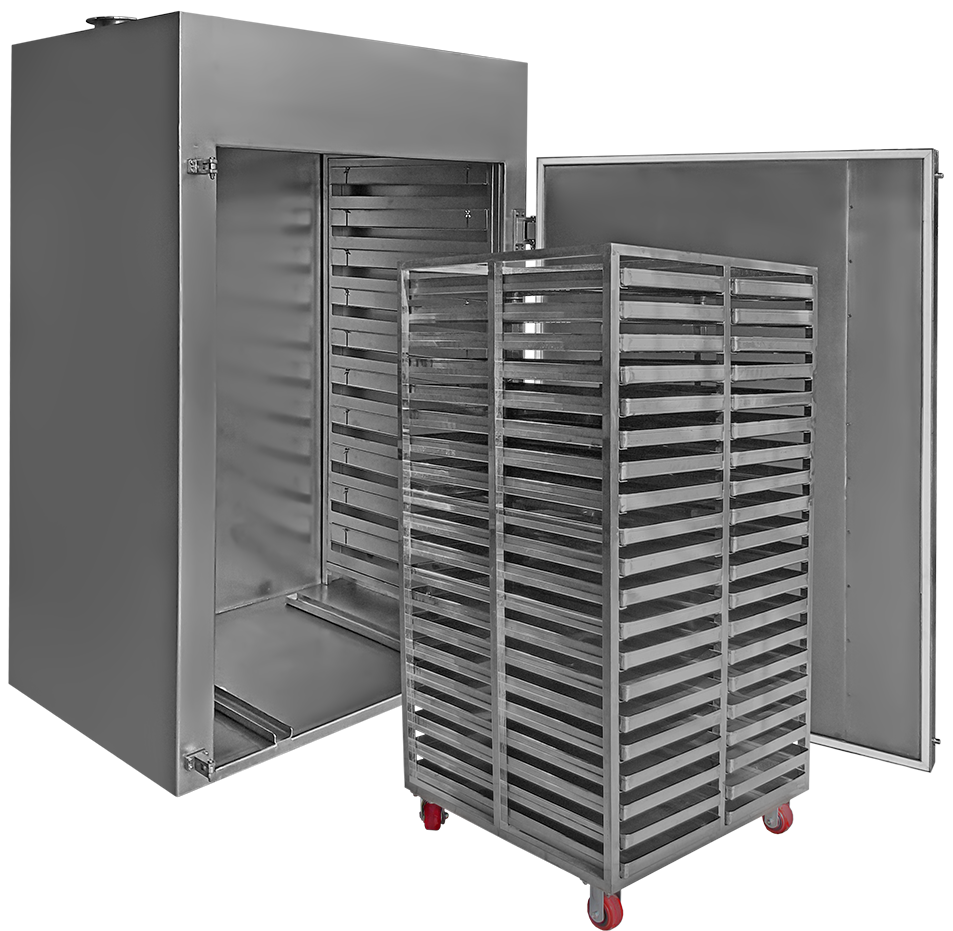

Picture of Tray Bed Dryer

Tray Bed Dryer

40 - 60 - 80 (Tray)


Among the methods of drying medicinal granules, one of the methods is to use a dryer in a fixed bed (tray), which dries the medicinal granules by passing the heated air through the inlet airbox through the trays.

  • Used for drying granules
  • All GMP requirements and standards, safety precautions and operator requirements are included in the construction of the machine
  • Has a touch panel system (HMI) and PLC system to control, monitor and adjust all fixed and variable parameters
  • Has a login menu with the ability to set a password for each operator (with separate access levels for user, supervisor and administrators)
  • Set and save instructions (Recipe) in the machine memory
  • The trays are made of SST-316L with a thickness of 1 mm and are completely integrated and without welding.
  • The body of the machine is all steel and made of SST-304
  • Steam heating system with temperature setting as PID
  • Air intake airbox, pre-filter, bag filter, HEPA filter
  • The machine has an explosion valve to discharge the pressure of the possible explosion gas to the open environment.
  • Has validation documents (OQ, IQ, DQ)

3D View

The possibility of viewing the general view of the designed machine in the technical and engineering office of Noavaran Industries has been provided to you dear ones. After loading the 3D model, you will be able to rotate and view all angles.


Info & Abilites


Please select the features of the device and add it to your order list.
